Air Data Engine

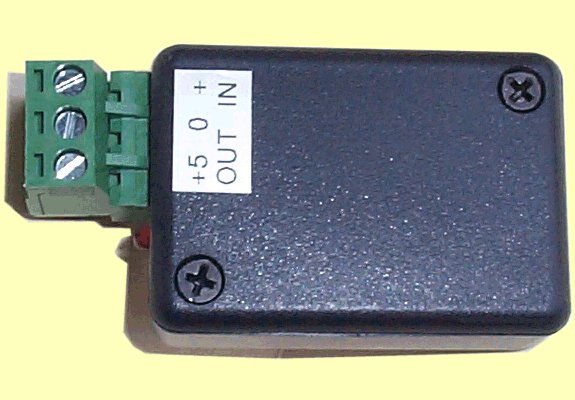

High efficiency power supply. Designed to supply handheld computing or GPS equipment.
Fully protected from reverse polarity or overload and carefully designed for low levels of radiated noise to minimise radio squelch breakthrough.
High efficiency reduces battery drain, for example, from a 12volt battery delivering 5volts @ 0.5amp, the current draw is less than 0.23amp from the battery and no heat can be noticed. Specifications:
Internal input current limit: 1amp. (auto reset)
Output: 5 volts at 1 amp. (Other voltages on request.) Input: 9 volts minimum at full output. max.36 volts
Dimensions: 35x49*x20mm. *65mm inc.connector.
Anodized aluminium with thread inserts. Fixing screws supplied.

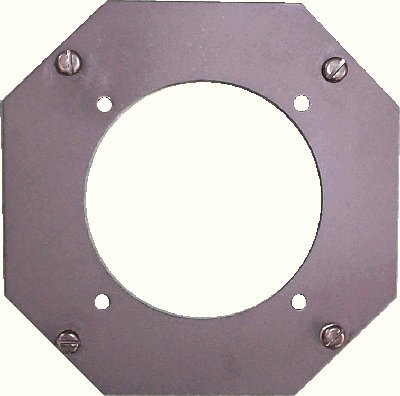

57mm panel mount layout.
